Armored/common floating hoses are used in offshore oil and gas operations to move fluids like crude oil and natural gas between drilling rigs and floating boats. These pipes can be either armored or simple floating hoses. In contrast to typical floating hoses, which rely on buoyancy to stay in place, armored hoses are strengthened with extra layers of steel wire to endure challenging working circumstances including strong currents and abrasive sea bottom conditions. The effective and safe conveyance of fluids in offshore activities depends heavily on these kinds of hoses.
| Item Code | ID | WP | BP | Min Bending Radius | Wear Layer Thickness | Cover Thickness | L | |
| inch | mm | bar | bar | mm | mm | mm | m | |
| FDH150 | 6 | 150 | 5-10 | 15-30 | 8D | 10-20 | 8-12 | 11.8 |
| FDH200 | 8 | 200 | 5-10 | 15-30 | 8D | 10-20 | 8-12 | 11.8 |
| FDH250 | 10 | 250 | 5-10 | 15-30 | 8D | 10-20 | 8-12 | 11.8 |
| FDH300 | 12 | 300 | 10-20 | 30-60 | 12D | 12-25 | 10-15 | 11.8 |
| FDH350 | 14 | 350 | 10-20 | 30-60 | 12D | 12-25 | 10-15 | 11.8 |
| FDH400 | 16 | 400 | 10-20 | 30-60 | 12D | 12-25 | 10-15 | 11.8 |
| FDH450 | 18 | 450 | 10-20 | 30-60 | 12D | 12-25 | 10-15 | 11.8 |
| FDH500 | 20 | 500 | 10-20 | 30-60 | 12D | 12-25 | 10-15 | 11.8 |
| FDH600 | 24 | 600 | 15-20 | 45-60 | 15D | 20-30 | 12-15 | 11.8 |
| FDH650 | 26 | 650 | 15-20 | 45-60 | 15D | 20-30 | 12-15 | 11.8 |
| FDH700 | 28 | 700 | 20-25 | 60-75 | 15D | 30-50 | 15-18 | 11.8 |
| FDH750 | 30 | 750 | 20-25 | 60-75 | 15D | 30-50 | 15-18 | 11.8 |
| FDH800 | 32 | 800 | 20-25 | 60-75 | 15D | 30-50 | 15-18 | 11.8 |
| FDH850 | 34 | 850 | 20-25 | 60-75 | 15D | 30-50 | 15-18 | 11.8 |
| FDH900 | 36 | 900 | 25-30 | 75-90 | 15D | 30-50 | 18-20 | 11.8 |
| FDH1000 | 40 | 1000 | 25-30 | 75-90 | 15D | 50-75 | 18-20 | 11.8 |
| FDH1100 | 44 | 1100 | 25-30 | 75-90 | 15D | 50-75 | 18-20 | 11.8 |
1. Durability: Armored/Common Floating Hoses are designed to withstand harsh environmental conditions and heavy-duty applications. They are built with high-quality materials and reinforced with steel or wire to ensure long-lasting performance.
2. Safety: These hoses are engineered with safety features such as anti-static properties and high-pressure resistance. They are designed to handle demanding tasks while minimizing the risk of accidents or equipment failure.
3. Versatility: Armored/Common Floating Hoses are suitable for a wide range of applications, including offloading operations, dredging, and oil and gas exploration. They can be customized to meet specific requirements and are compatible with various media.
4. Reliability: These hoses undergo rigorous quality control checks to ensure they meet industry standards and specifications. They are manufactured by reputable companies with a track record of producing reliable products, offering peace of mind to customers.
5. Ease of installation: Armored/Common Floating Hoses are designed for easy installation and maintenance. They have user-friendly features that allow for quick connection and disconnection, reducing downtime and increasing operational efficiency.
6. Flexibility: These hoses are highly flexible, allowing for smooth movement and maneuverability even in challenging conditions. They can withstand bending and stretching without compromising their structural integrity.
7. Cost-effectiveness: Armored/Common Floating Hoses offer a cost-effective solution compared to alternative options. They have a long operational lifespan, requiring minimal maintenance and replacement, resulting in reduced overall costs.
Overall, Armored/Common Floating Hoses provide durability, safety, versatility, reliability, ease of installation, flexibility, and cost-effectiveness, making them a preferred choice for various industries and applications.

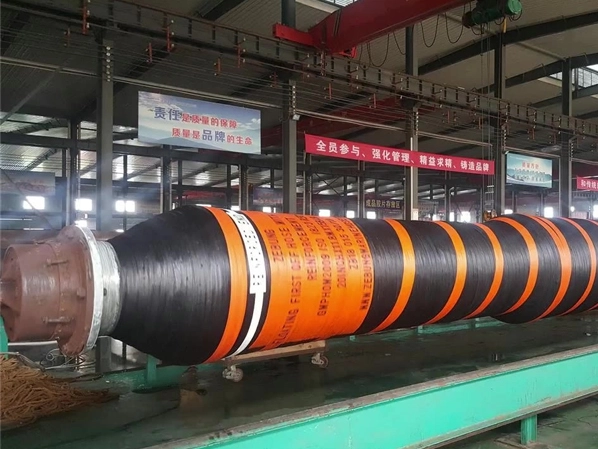

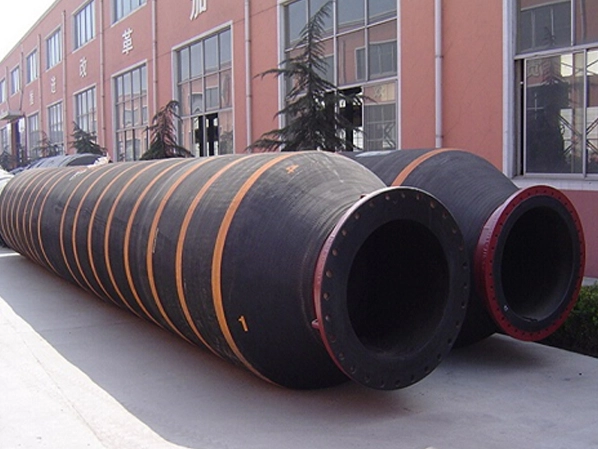

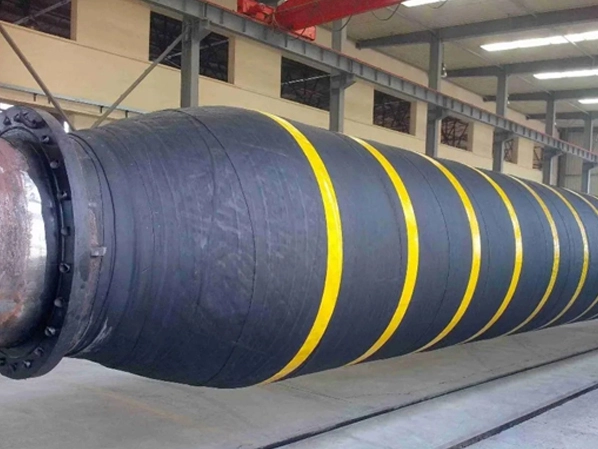

Dredge Full Armored Floating Hoses and Common Floating Hoses Technical Specifications by XJG Group.
XJG GROUP: DREDGING FLOATING HOSES AND PIPE AND FLOATS EXPERT SINCE 1988! DEDICATED TO OFFSHORE CONSTRUCTION; DREDGING; MARINE SERVICE.
XJG group's own-patented self-floating hoses are made of high-quality and wear-resistant rubber, the outer cover has excellent abrasion resistance and UV protection.
The outside of the tube is wrapped with buoyancy material and covered with a protective layer.
XJG floating dredging hoses are widely used with dredgers for silt or gravel conveyance.
What are the pressure-handling capabilities of armored/common floating hoses?
Armored/common floating hoses can handle pressures up to 15,000 psi and more, depending on their size and construction.
What factors should be considered when selecting armored/common floating hoses for specific offshore operations?
Factors when selecting armored/common floating hoses include pressure and temperature ratings, diameter, length, end fittings, and environmental conditions.
What types of materials are commonly used in the construction of armored/common floating hoses?
Common materials for armored/common floating hoses include synthetic elastomers, polyethylene, polyester fabric, and high-strength steel wire.
How are armoured /common floating hoses used in offshore applications?
Armored/common floating hoses can handle pressures up to 15,000 psi and more, depending on their size and construction.
