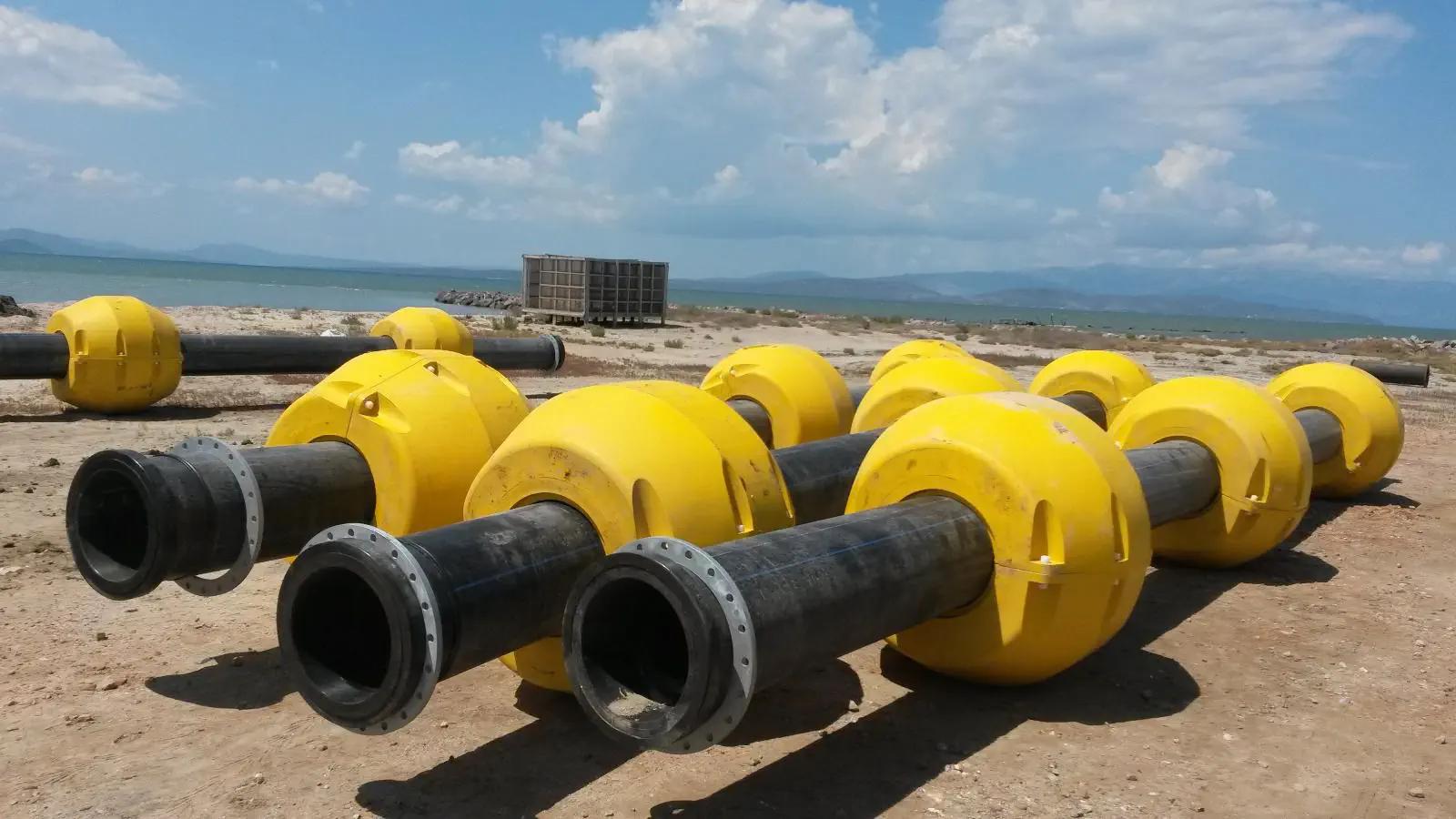

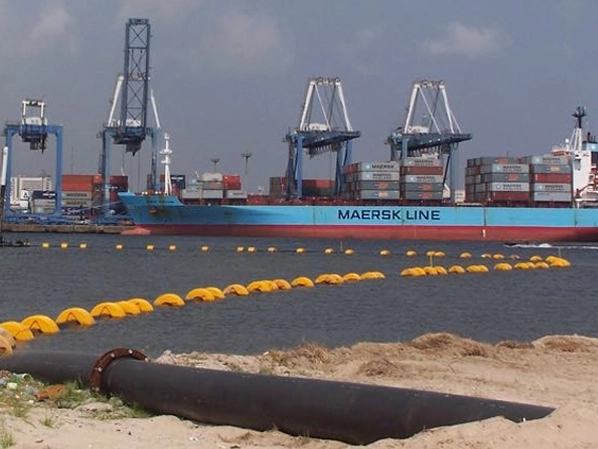

Plastic/hdpe pipe floaters are buoyant devices used to support pipelines and hoses in marine and offshore applications. They are designed to allow pipes and hoses to float on the water surface and remain stable during operations such as dredging, drilling, and oil and gas exploration. Plastic floaters are made of high-density materials such as polyethylene and polyurethane and are highly resistant to corrosion, impacts, and UV radiation. They can be customized to fit specific pipe sizes and configurations, ensuring safe and reliable installation of pipelines and hoses in any marine environment.
Pipe I.D. | Thickness of pipe | Floater I.D. | Floater O.D. | Floater Length. | Hull Thickness | Net Buoyance |
mm | mm | mm | mm | mm | mm | kg |
200 | 6 | 220 | 500 | 800 | 7 | 200 |
285 | 6 | 300 | 700 | 1200 | 7 | 420 |
350 | 6 | 375 | 1100 | 1100 | 7 | 920 |
400 | 8 | 414 | 1100 | 1200 | 8 | 1020 |
414 | 8 | 430 | 1200 | 1200 | 8 | 1200 |
450 | 8 | 480 | 1300 | 1300 | 8 | 1500 |
500 | 10 | 580 | 1400 | 1550 | 9 | 2219 |
600 | 10 | 630 | 1400 | 1700 | 11 | 2400 |
650 | 10 | 680 | 1480 | 1800 | 11.5 | 2930 |
700 | 12 | 730 | 1600 | 1900 | 12 | 3593 |
750 | 12 | 780 | 1600 | 2000 | 13 | 3800 |
800 | 15 | 830 | 1800 | 2000 | 14 | 4800 |
850 | 15 | 880 | 1800 | 2200 | 15 | 5140 |
900 | 18 | 940 | 2200 | 2500 | 16 | 8180 |
Remark: 1. 2pcs per completer floater 2. Floaters under the size of 4m(O.D.)X4m(L) are all available | ||||||

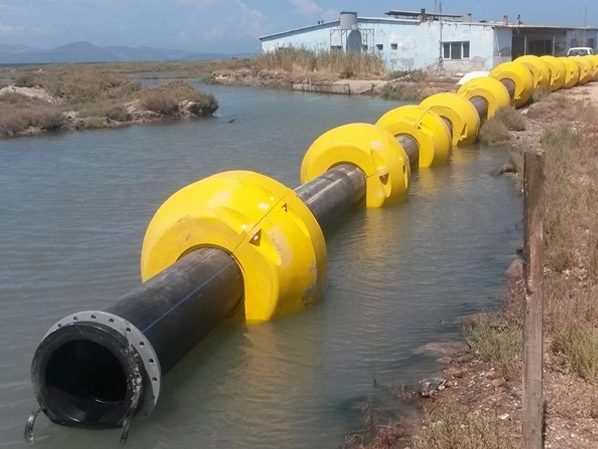

Plastic/hdpe pipe floaters have several applications in offshore and marine industries. They can be used to support pipelines, hoses, and cables during dredging, drilling, and oil and gas exploration operations.
Plastic floaters can also be used for marine aquaculture, fish farming, and in the transportation of liquids and gases through pipelines.
They help prevent pipe and hose damage and ensure stability in rough marine environments.
Additionally, they can be used in the installation of floating docks, platforms, and buoys, making them versatile equipment for marine and offshore operations.
Plastic/hdpe pipe floaters have several features that make them useful in marine and offshore applications. For example, they are highly versatile and can be customized to fit a range of pipe sizes and configurations. They are lightweight, durable, and can withstand harsh marine environments, including impacts, UV radiation, and corrosion. The floaters feature a simple design and are easy to install and maintain. They are also environmentally friendly, as they do not emit harmful substances and are recyclable at the end of their life cycle. These features make plastic/hdpe pipe floaters an efficient, cost-effective, and reliable solution for supporting pipelines and hoses in offshore and marine environments.
What are the benefits of plastic floaters/hdpe pipe floaters?
Plastic floaters/hdpe pipe floaters offer many benefits, such as stability, buoyancy, and resistance to UV radiation, corrosion, and impacts. They are also lightweight, easy to install, and environmentally friendly.
What types of pipelines and hoses can be supported by plastic floaters/hdpe pipe floaters?
Plastic floaters/hdpe pipe floaters can support a wide range of pipelines and hoses used in marine industries, such as dredging, oil and gas exploration, drilling, and marine aquaculture.
How are plastic floaters/hdpe pipe floaters installed?

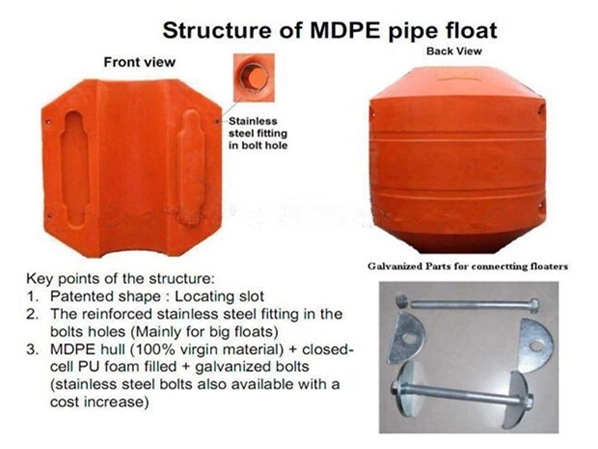

Plastic floaters/hdpe pipe floaters are installed by securing them around the pipe or hose using bolts, clamps, or ties. They can be configured in different shapes and sizes depending on the specific project needs.
Are plastic floaters/hdpe pipe floaters recyclable?
Yes, plastic floaters/hdpe pipe floaters are recyclable and can be repurposed after their life cycle, making them an environmentally friendly option for offshore and marine industries.
