Name: PVC Double Pipe Production Line
Brand: Zhang Jia Gang QING CHEN YU Machinery Co., Ltd.

PVC Double Pipe Production Line

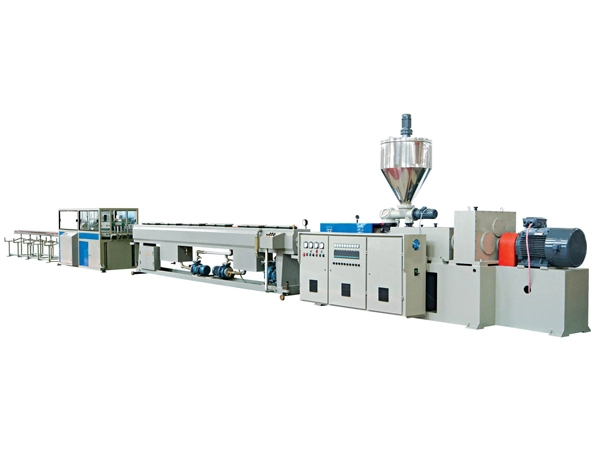

A high-performance production system called the PVC Double Pipe Production Line can concurrently make two PVC pipes with various diameters. An extruder, die head, vacuum tank, cooling system, haul-off device, and cutting device are all part of the manufacturing line. While the die head creates the required pipe size and form, the extruder melts the PVC resin. The pipe manufacturing process is completed by the vacuum tank, cooling system, haul-off machine, and cutting machine, resulting in high-quality and long-lasting PVC pipes for a variety of applications. The system's capacity to produce twin pipes boosts output while cutting expenses associated with production.

Features of PVC Double Pipe Production Line

The products of the PVC double pipe extrusion production line are primarily utilized in constructing threading pipes and electrical conduits.

The main machine employs a conical twin-screw extruder, enhancing the mixing effect and generating high extrusion pressure.

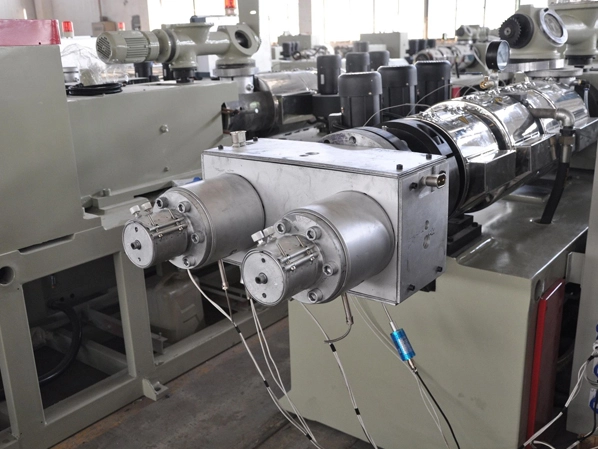

A double-tube extrusion die ensures high production efficiency and stable pipe formation.

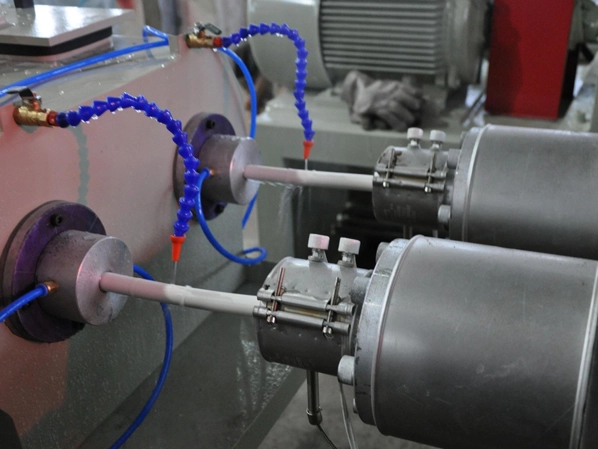

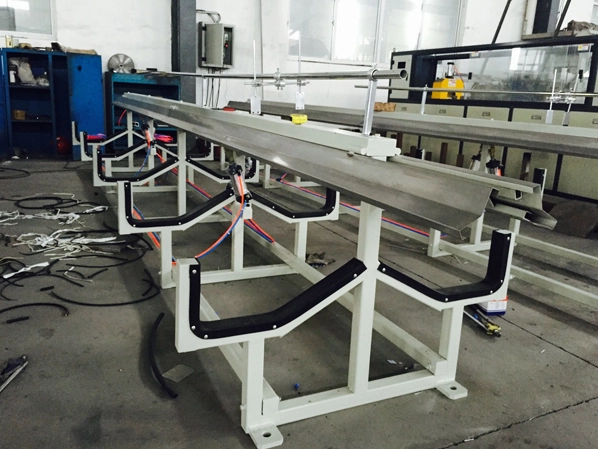

Utilizing double-tube vacuum sizing technology and spray cooling guarantees pipe quality. The single production control system of the double-tube traction mechanism and synchronous cutting results in compact equipment with a small footprint. Additionally, it features precise and customizable tipping and stacking capabilities.

The main machine is equipped with either an SJZ51/105 or SJZ65/132 conical twin-screw extruder, along with a stainless steel spray setting machine for double pipe single control.

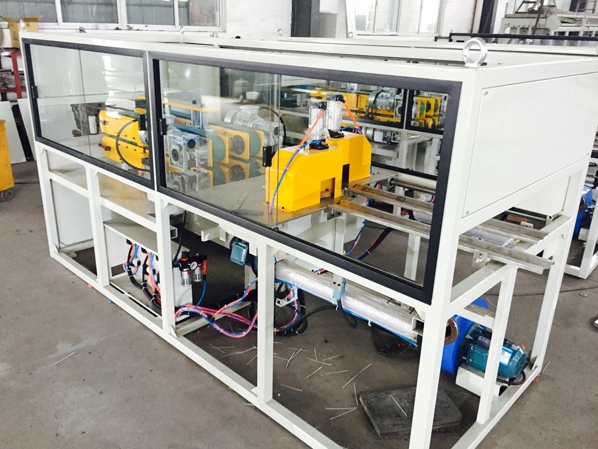

Integrating automatic single control double traction and cutting with front double setting technology enables flexible operation, allowing separate processing of the two pipes. This setup maximizes extrusion capacity, ensuring high output even for small diameter pipes, while also providing safety and convenience.

The primary application of the first mock exam is for electrical double tube equipment such as electrical wire drawing pipes and PVC double-thread extruders with double cavities and molds. These systems offer excellent plasticizing, high productivity, efficiency, and multifunctionality for PVC processing.

Applications of PVC Double Pipe Making Machine

PVC pipes lead the plastic pipe industry in both usage and application. With excellent surface hardness, tensile strength, and resistance to aging, they are widely utilized in electrical cable conduits, water supply networks, drainage systems, agricultural irrigation, architectural water supply, and cable laying, among other applications.

Key Components of PVC Twin Pipe Production Line

Twin Screws:The twin screws serve as the core component of the extruder, responsible for conveying, mixing, melting, and homogenizing the PVC resin. Constructed from hardened or stainless steel, they feature a spiral design.

Barrel:The barrel houses the twin screws and is typically crafted from steel or stainless steel. It is heated using electric heaters or steam coils and maintains a uniform temperature regulated by a thermostat to facilitate even melting of the PVC resin.

Motor:The motor powers the rotation of the twin screws and is usually a three-phase electric motor.

Controller:The controller manages the motor speed, barrel temperature, and other extruder parameters. Typically, it is a programmable logic controller (PLC).

Benefits of Using the PVC Double Pipe Production Line

The PVC Double Pipe Production Line is a highly efficient manufacturing system that offers several benefits for industrial and construction applications. One of the primary benefits is its ability to produce two different diameter pipes simultaneously, increasing production efficiency and reducing manufacturing costs. The system uses high-quality materials, such as PVC resin, ensuring that the pipes produced are durable and long-lasting. The pipes produced by the PVC double pipe making machine are also resistant to chemicals, UV rays, and corrosion, making them suitable for applications in harsh environments. Additionally, the system is designed for high levels of automation and easy operation, reducing the need for manual intervention and minimizing production errors.

FAQs Of PVC Double Pipe Production Line

What are the common applications of PVC pipes?

PVC pipes are commonly used in applications such as water distribution, drainage, sewage, and irrigation systems, as well as in electrical conduit.

How could we choose the right PVC pipe?

The right PVC pipe will depend on the specific project, such as whether it needs to withstand high pressure or high temperatures.

What are some common maintenance tasks for a PVC double pipe production line?

Common maintenance tasks include checking equipment for wear and tear, replacing worn-out parts, and conducting regular cleaning to prevent the buildup of debris or residue.

Pipe Diameter (mm)	Extruder Model	Downstream Model	Vacuum Tank	Hauler	Cutter
16-63	SJZ-65/132 (or SJZ-80/156)	GF-63*2	5000mm	Caterpillar	Saw Cutter
40-110	SJZ-80/156 (or SJZ-92/188) (or PS-110/28)	GF-110*2	5000mm	Caterpillar	Saw Cutter
