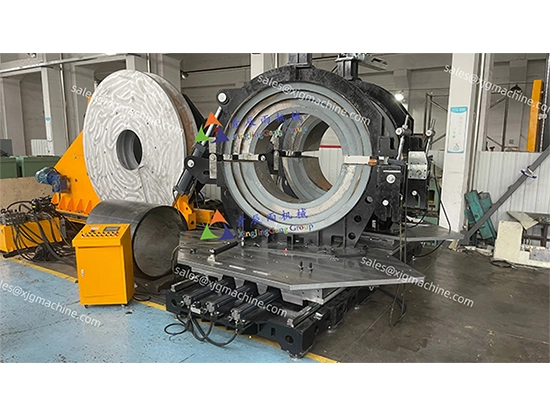

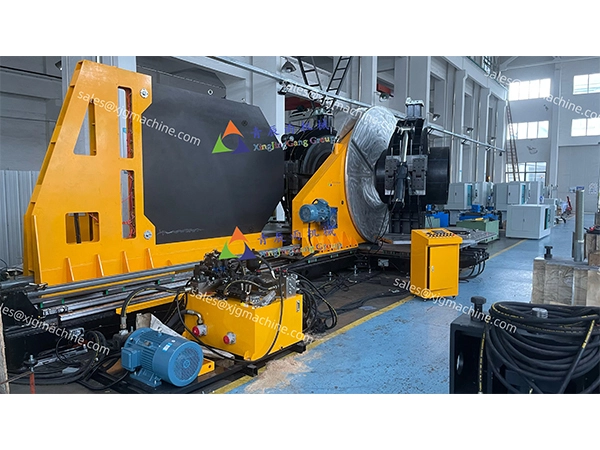

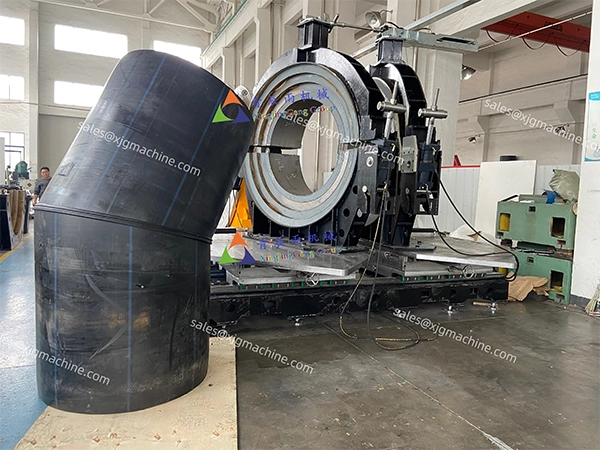

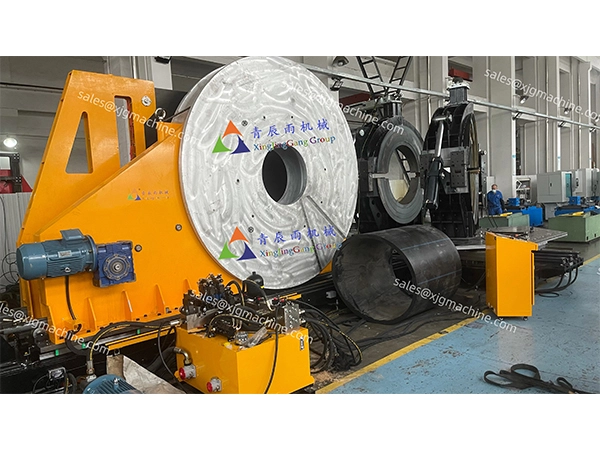

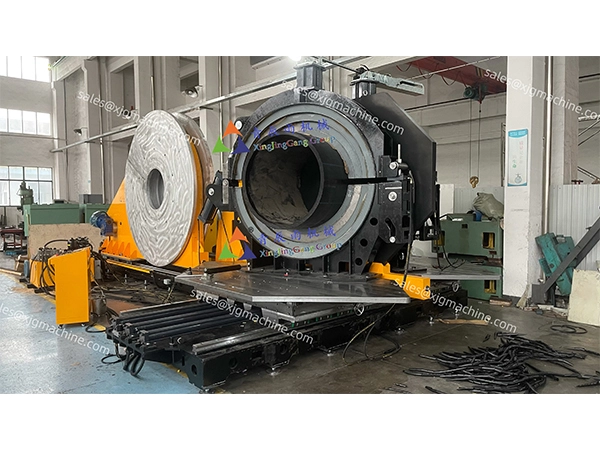

The RHJ Multi-Angle Fitting Elbow Welding Machine is a specialized machine used in the welding of multi-angle elbow fittings for pipes. It is designed to provide accurate, efficient, and reliable welding of elbow fittings in a range of angles. The machine uses advanced technology and features precise control of welding parameters to ensure high-quality welds that meet the requirements of various industries.
As a professional Multi-Angle Fitting Elbow Welding Machine manufacturer and supplier, we provide various models of Multi-Angle Fitting Elbow Welding Machines. There is always one that can meet your needs. Check the detailed information about our Multi-Angle Fitting Elbow Welding Machine below. Or you can contact us directly and get the latest Multi-Angle Fitting Elbow Welding Machine price.
| Model | RHJ 315 | RHJ 450 | RHJ 630 |
| Welding range(mm) | 110, 125, 140, 160, 180, 200, 225, 250, 280, 315 | 250, 280, 315, 355, 400, 450 | 355, 400, 450, 500, 560, 630 |
| Welding Type | 0~90° EIbow, tee, cross. 45° and 60 °Y shape (optional parts should be used) | ||
| Heating Plate Max. Temp | 270°C | 270°C | 270°C |
| Temp. Deviation in surface | <±7° | <±7° | <±7° |
| Working voltage | 380V, 50Hz | 380V, 50Hz | 380V, 50Hz |
| Heating Plate Power | 5.25 KW | 12 KW | 22 KW |
| Planing Tool Power | 1.5 KW | 2.2 KW | 2.2 KW |
| Hydraulic unit Power | 0.75 KW | 4 KW | 4 KW |
| Hydraulic unit Power | 7.5 KW | 18.2 KW | 28.2 KW |
| Total Weight(Exclude optional parts) | 848 KGS | 2900 KGS | 4470 KGS |
| Model | RHJ 800 | RHJ 1000 | RHJ 1200 |
| Welding range(mm) | 500, 560, 630, 710, 800 | 710, 800, 900, 1000 | 800, 900, 1000, 1200 |
| Welding Type | 0-90° Elbow, tee, cross. 45°and 60 Y shape (optional parts should be used) | ||
| Heating Plate Max. Temp | 270°C | 270°C | 270°C |
| Temp. Deviation in surface | <±7° | <±7° | <±7° |
| Working voltage | 380V, 50Hz | 380V, 50Hz | 380V, 50Hz |
| Heating Plate Power | 40 KW | 60 KW | 62 KW |
| Planing Tool Power | 3 KW | 4 KW | 5.5 KW |
| Hydraulic unit Power | 4 KW | 5.5 KW | 7.5 KW |
| Hydraulic unit Power | 47 KW | 69.5 KW | 75 KW |
| Total WeighteExclude oplional parts) | 4900 KGS | 15000 KGS | 18000 KGS |
As our hot-sale hdpe but welding machine, the RHJ Multi-Angle Fitting Elbow Welding Machine offers several advantages in the welding of multi-angle elbow fittings for pipes. It provides accurate welding in a range of angles, making it versatile for various applications. The machine is designed to handle high production volumes due to its efficient and reliable performance. It uses advanced technology and precise control of welding parameters that ensure the highest quality welds, meeting industry standards. The machine is user-friendly, easy to operate, and requires minimal maintenance. It is built with durable materials and a sturdy construction, making it a long-lasting investment for businesses in the industrial and piping industries.
Workshop machine used to weld PE, PP same diameter elbow,90°tee and cross,45°,60°Y-shape tee, elbow and straight pipe, etc.
Integrated structure design, just change clamp while process different diameter fittings.
RHJ315-450Heating mirror and milling plate adopt rotary structure, RHJ630-1600 Heating mirror and milling plate movement adopt structure.
Milling plate movement adopts safety switch control to avoid unexpected start, with single face milling function, double sharpen blade can be shift using.
Heating mirror coated PTFE layer, electrical thermometer, display digital directly.
Electrical timer alert, easy operation.
Reliable performance, easy control.
Special clamp for flange.
Special clamp for fitting.
45°, 60°Y Tee clamp.
How RHJ Multi-angle Fitting Elbow Welding Machine Improves Accuracy and Consistency of Elbow Welds
By offering precise control of welding conditions, the RHJ Multi-Angle Fitting Elbow Welding Machine enhances elbow weld accuracy and consistency. The device enables a variety of welding angles and guarantees that each weld is finished with a high level of precision. Because of the machine's cutting-edge technology, welding is dependable and consistent, making it perfect for high-volume manufacturing. Operators may change the welding parameters thanks to the machine's user-friendly interface, guaranteeing that each weld complies with industry requirements. Additionally, the RHJ Multi-Angle Fitting Elbow Welding Machine lessens the possibility of human mistake, which may lead to subpar welds and defective products.
How easy is it to operate the RHJ Multi-Angle Fitting Elbow Welding Machine?
The machine is user-friendly, making it easy to operate. It has a control panel that allows for simple, accurate, and precise adjustment of the welding parameters.
What range of angles can be welded using the RHJ Multi-Angle Fitting Elbow Welding Machine?
The machine can weld elbows in a range of angles from 0 to 180 degrees. This provides versatility in manufacturing pipes for different industries.
What material of pipes can the RHJ Multi-Angle Fitting Elbow Welding Machine weld?
The machine can weld various materials of pipes, including Polyethylene (PE), Polypropylene (PP), Polyvinyl chloride (PVC), and Acrylonitrile-butadiene-styrene (ABS).
How long does it take to weld an elbow joint using the machine?
The welding time depends on the diameter and thickness of the pipes and the welding angle. However, on average, the machine can complete a weld in 20-50 minutes.
